This is a Brand New Open Box Item that has been Discounted by 15%. This microscope has been tested and inspected and is in perfect working condition. It comes with our 5-Year Warranty

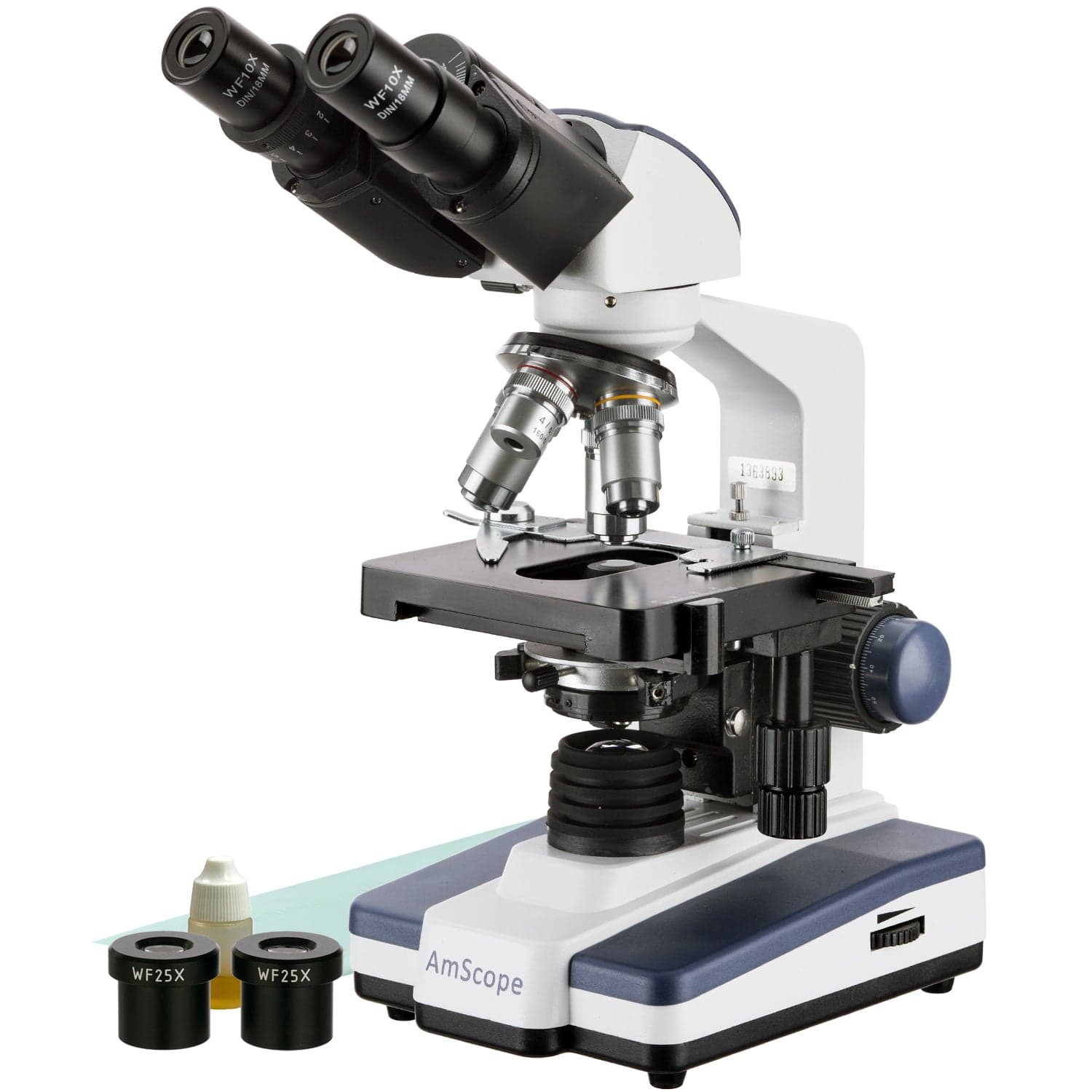

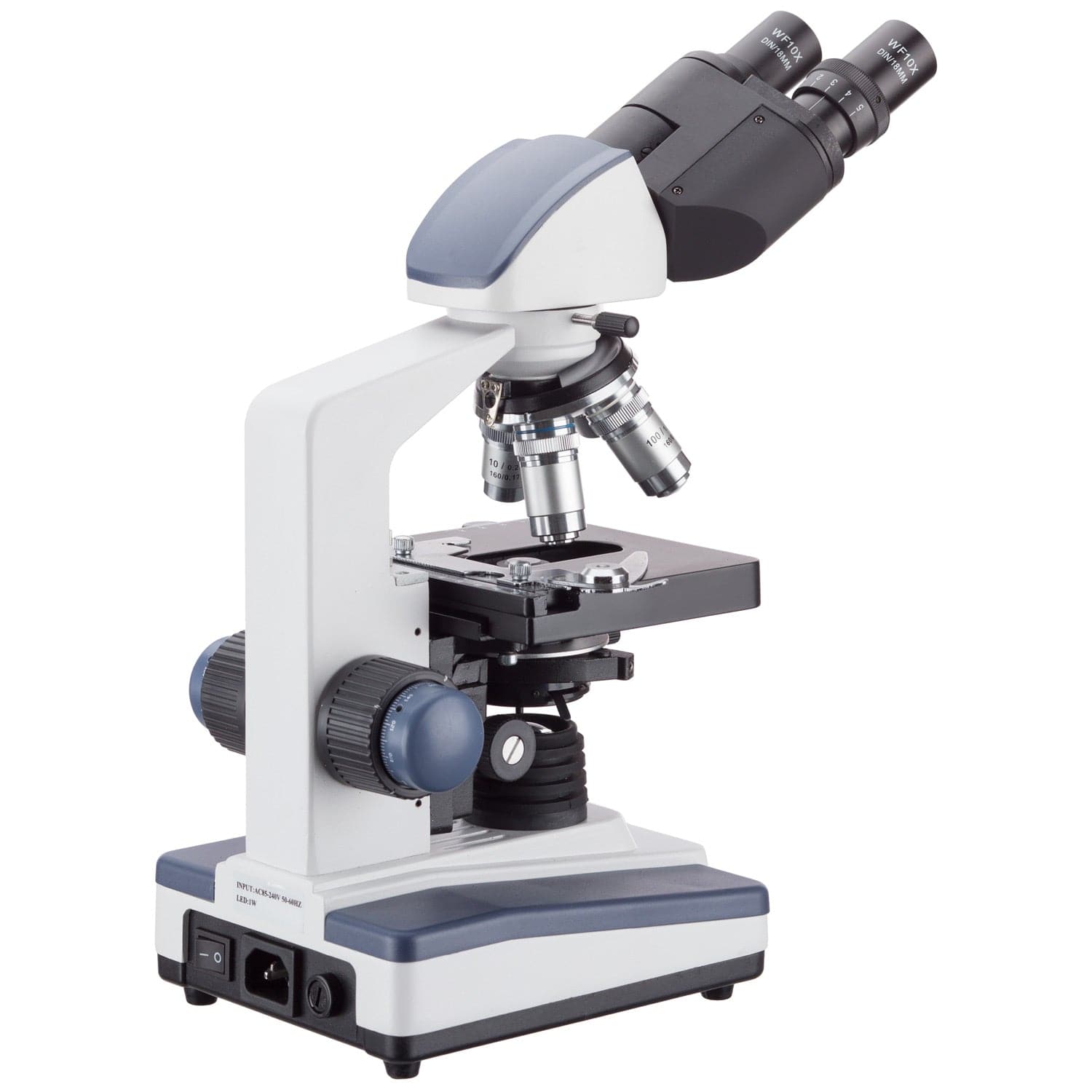

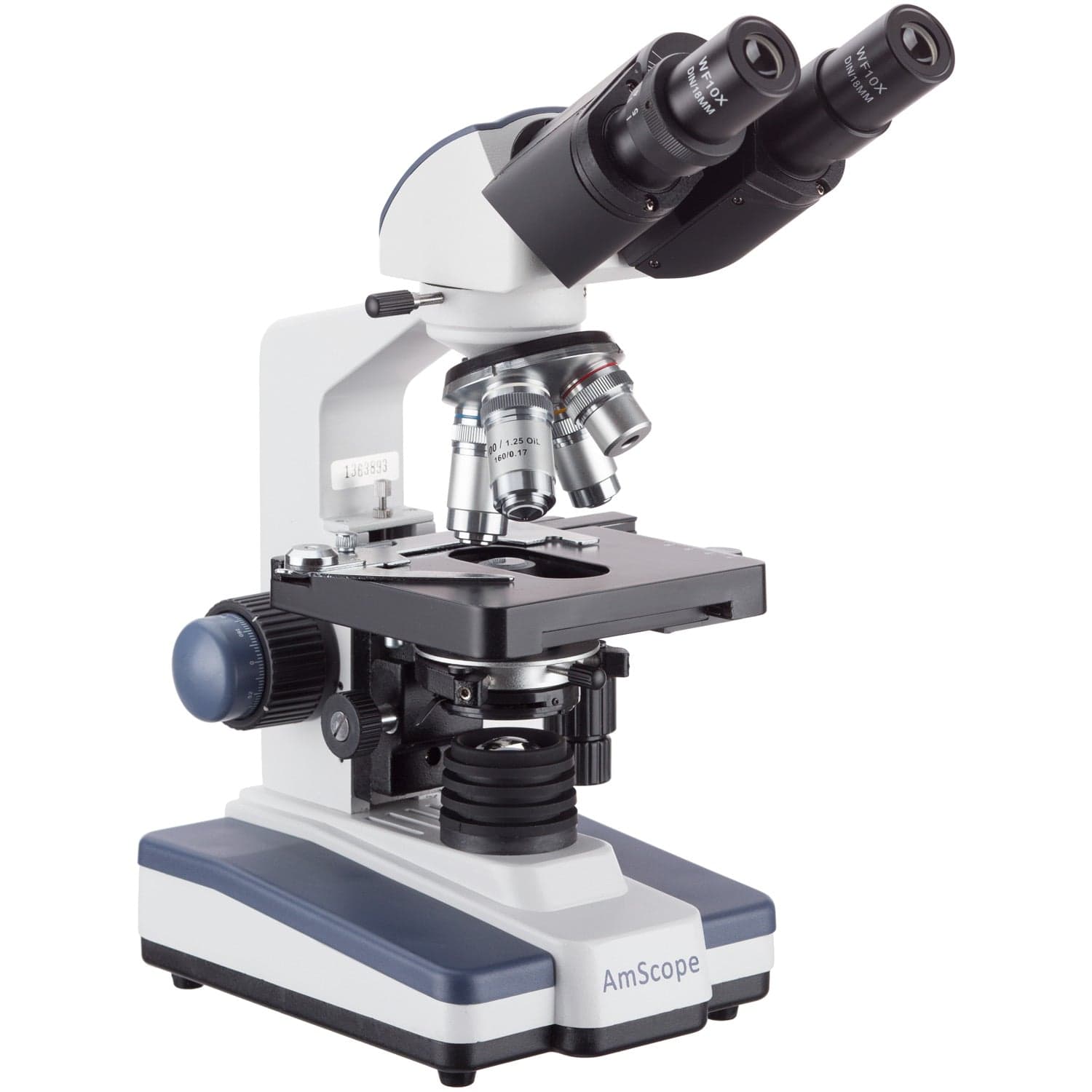

The B120C binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class. The Siedentopf binocular head allows you to easily adjust the interpupillary distance between the eyepieces without the need to readjust the focus. The 3D double-layer mechanical stage provides smooth movement along the X, Y and Z axes. Erogonomically positioned translation knobs control the X and Y movement, and coaxial coarse and fine focus knobs control the vertical Z axis. LED illumination provides low-heat, daylight-balanced light which is particularly helpful when viewing live specimens. Another major advancement is the interchangeable condenser, offering the ability to use darkfield and phase-contrast techniques. With 2 sets of eyepieces, there are six unique magnification settings: 40X, 100X, 250X, 400X, 1000X and 2500X. This microscope is an ideal instrument for students, clinics, and anyone involved in bacterial, biological, and pharmaceutical research.

Features :

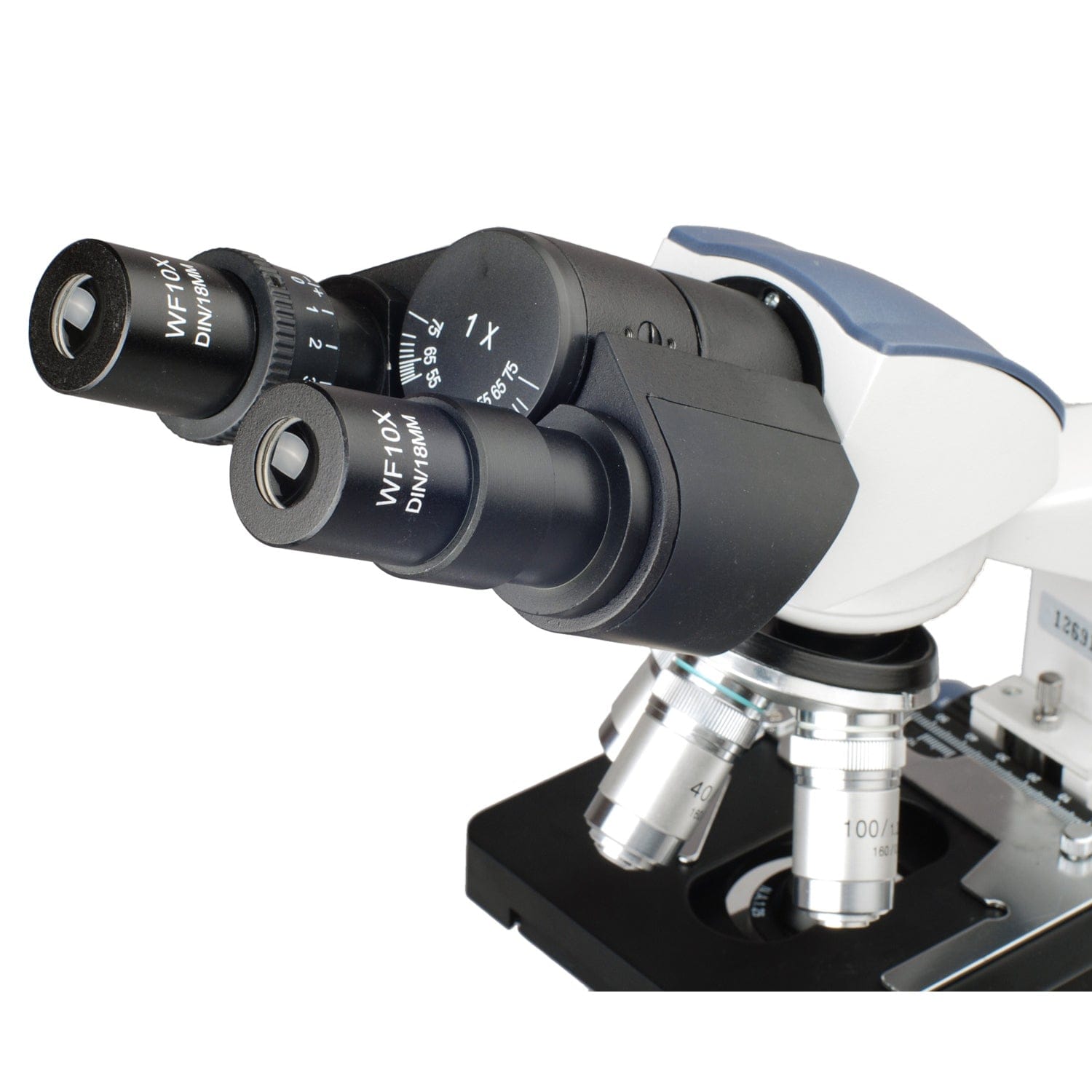

• 30 degree inclined 360 degree swiveling Siedentopf binocular head
• High quality precise optical glass elements
• Easy to attach a microscope camera or digital imager
• Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X

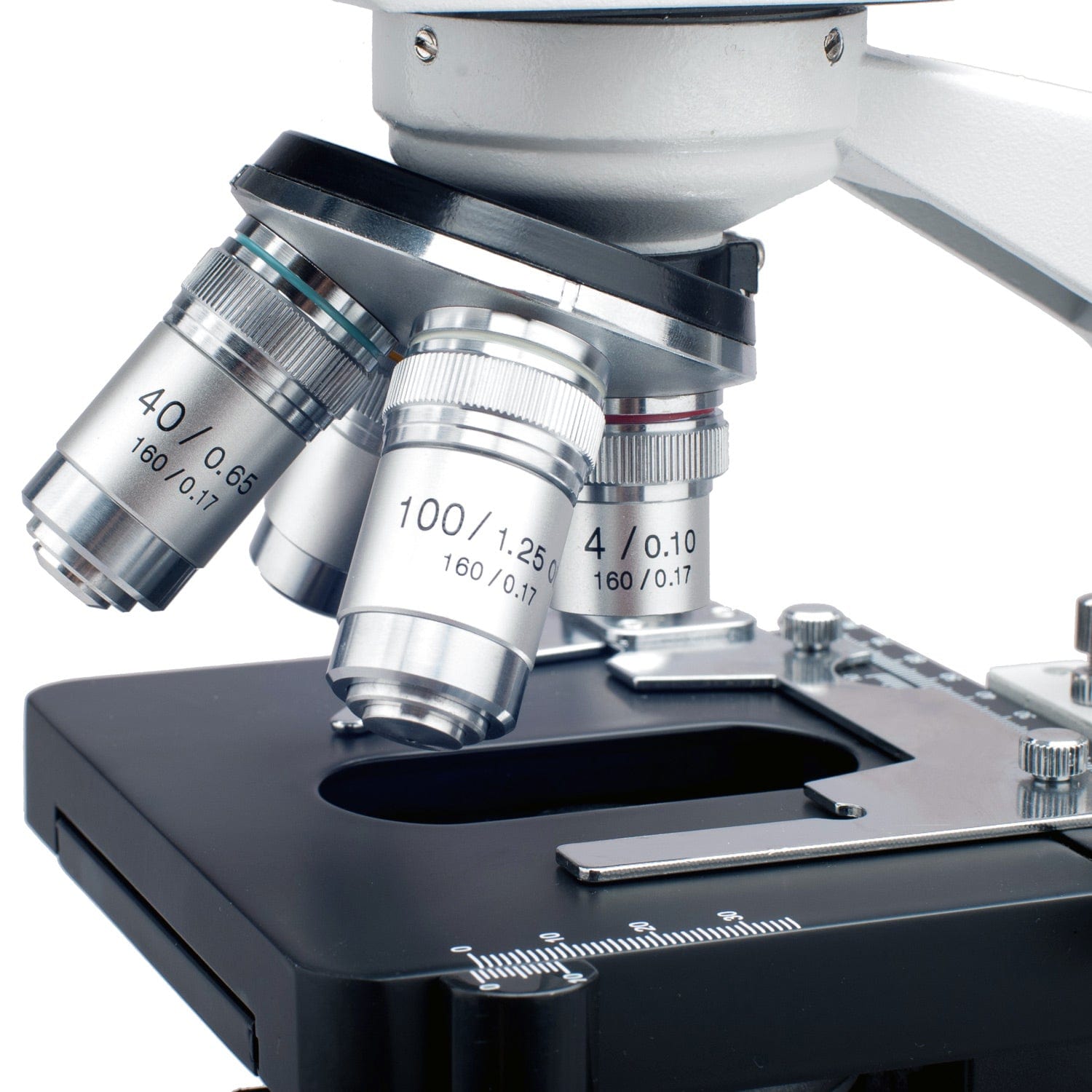

• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Two pairs of widefield eyepieces: WF10X and WF25X
• Adjustable interpupillary distance
• Adjustable ocular diopter
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser

Specifications :

• Eyepieces: widefield, WF10X and WF25X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30 degree inclined 360 degree swiveling binocular
• Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
• Adjustable ocular diopter
• Nosepiece: revolving quadruple port
• Mechanical Stage: 3D double-layer with caliper, X-Y-Z movement
• - Size: 4-5/8" x 5" (118mm x 127mm)
• - Travel Range (X-Y): 70mm x 21mm
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides
• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

Packing List :

• One Siedentopf Binocular Microscope Head
• One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
• Four DIN Standard Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 25X Eyepieces
• One Blue Color Filter
• One Dust Cover
• Sample Immersion Oil
• User's Manual Download
• Net weight: 10 lbs
• Shipping weight: 12 lbs
